MAL650
Length
2250 mm
Width
1770 mm
Height
1750 mm
Volume
2450 mm
Length
2250 mm
Maximum Productivity.

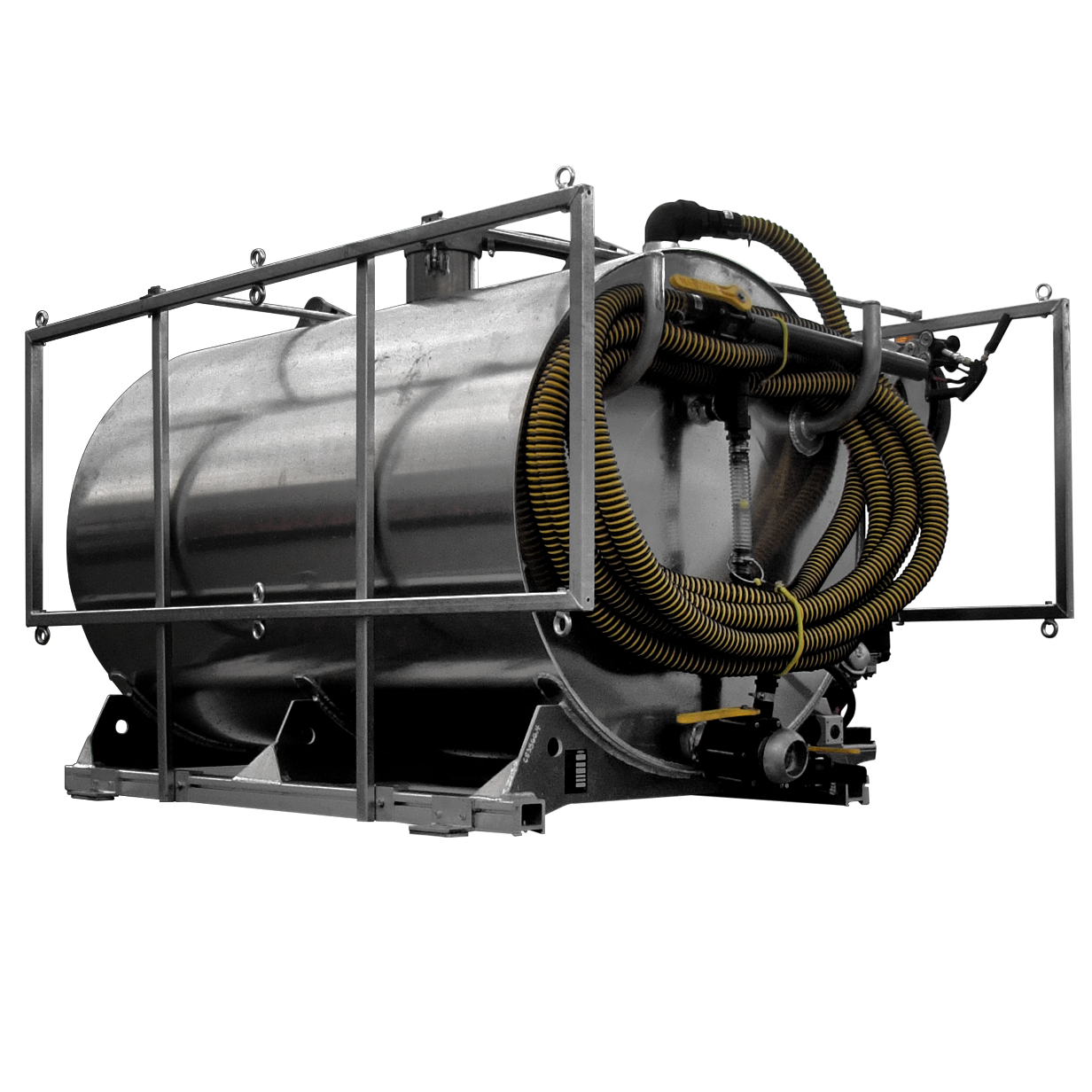

With a total volume of 2450 litres, the MAL650 is an ideal module to mount on a 5.5t + truck. Its waste capacity of no less then 1600 litres will be sufficient for most daily routes and come in handy on events as well. We can supply the MAL650 with a gasoline engine or hydraulic drive.
CONSTRUCTION
- Tank-in-tank, 2 chambers
- 2 Zinc anodes
- Easy-Fix mounting system
Features
- Primary Ball Valve
- Manhole 8”
- Secondary Ball Valve with drain
- Oil separator with drain
- Heavy duty UV-resistant hoses
- 12V Battery
- External oil tank for vacuum pump
- 2 Sight glasses for waste water level
- 3” Waste inlet (with 2” connector)
- Sight tube for fresh water level
Every product in the range is available to order. If it's not in stock in Australia, we can backorder it for you. Enquire now and we'll confirm timing.
Enquire about MAL650- Dimensions: 2250 x 1850 x 1750 mm (L x W x H)
- Dimensions (MAL650HP only): 2250 x 1770 x 1750 mm (L x W x H)
- Dimensions footprint: 2350 x 1950 mm (L x W)
- Dimensions footprint (MAL650HP only): 2350 x 1870 mm (L x W)
- Total Volume: 2450 L
- Waste Capacity: 1600 L
- Clean Water Capacity: 850 L
- Dry Weight* MAL650: 460 kg
- Dry Weight* MAL650LP: 470 kg
- Dry Weight* MAL650HPe: 475 kg
- Dry Weight* MAL650HP: 485 kg
- * Dry weight is based on calculation of all components seperately. They may vary depending on the service module configuration.
Specifications
